Finalized the footbox vents

It’s been a while since my last update. I’ve been waiting on the A/C kit from FFR – it took 2 months to arrive, and parts were damaged. Really frustrating as FFR or FedEx won’t deal with the issue… So I’m getting back into the build while I let that marinate a bit in the back of my brain.

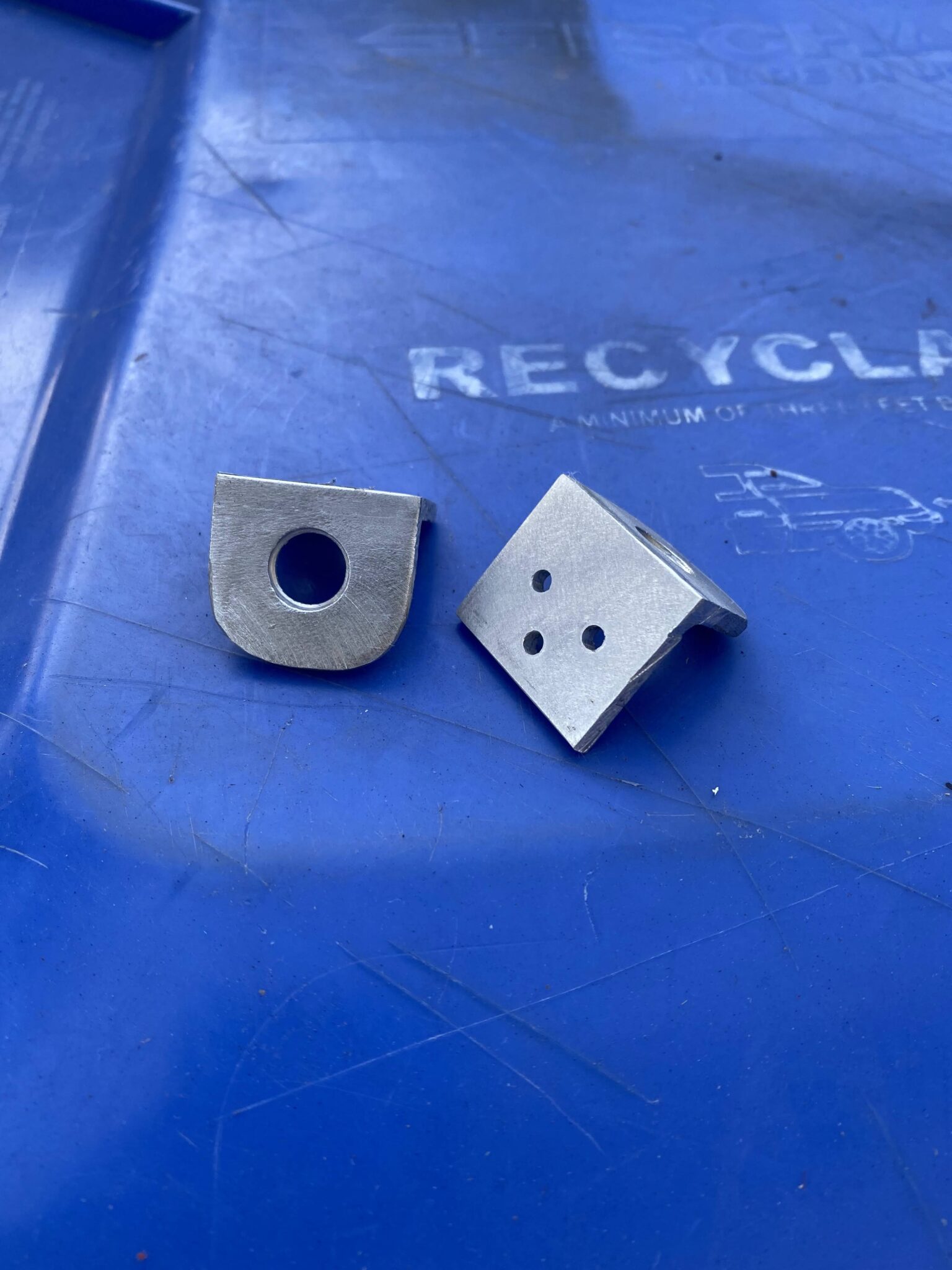

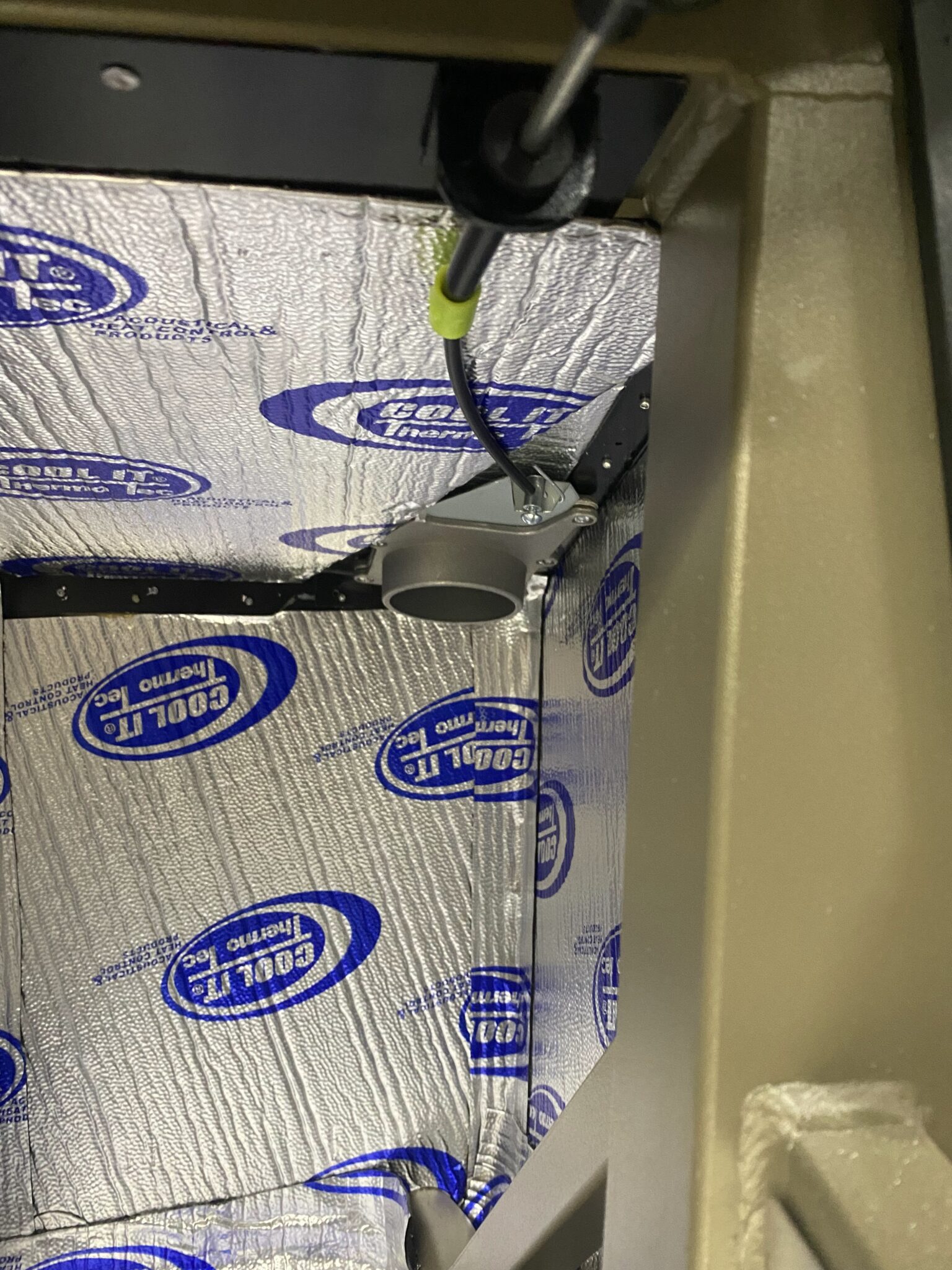

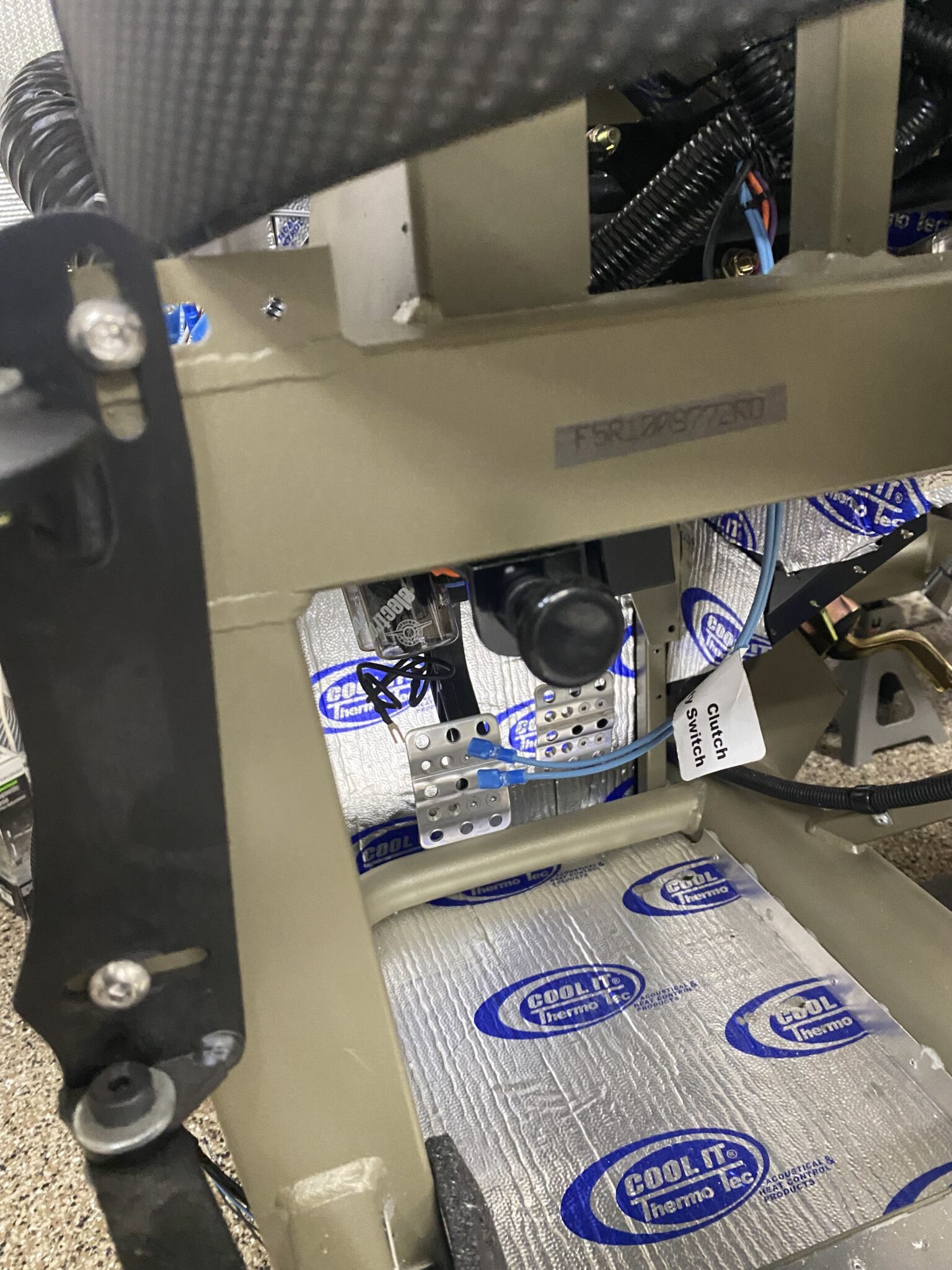

To attach the choke pull knobs I used some angle aluminum and made a few mount points. I riveted these to the 2-in square tube about 1.25″ off the sides to give enough room to get a hand in there. I then trimmed down the choke lines. The driver side is about 2.5′ long and the passenger side is about 9″ because of how I mounted it up high in the footbox. Overall I’m pretty happy with this small mod, with the helper blowers, my goal is to try to remove any stale/hot air in the footboxes.

Here is the full parts list for my setup:

• (2) SEAFLO 3″ In-Line Marine Bilge Air Blower 12V 130 CFM
• (2) Hand Choke Cable | 6 Foot Length
• (2) Spectre Performance 8791 3″ ID 90 Degree Boot
• (1) 4Pcs 3″ Adjustable 304 Stainless Steel Duct Clamps Hose Clamp
• (1) 3 inch Air Duct – 16 FT Long, Black Flexible Ducting HVAC Ventilation Air Hose
